Name: Factory price gigabit 4 port poe switch 65W with poe watchdog
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM064-PSE-GE V1
Price: 57.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Product name: 6 port POE switch

Input voltage: AC 100~240V 50/60Hz

Bandwidth: 12Gbps

Power supply: Power supply

Forwarding mode: Store Forward

OEM: Accept

Informasi dasar

Place of Origin: Guangdong, China

Nama merek: Olycom

Sertifikasi: CE RoHS FCC

Model Number: OM064-PSE-GE V1

Syarat-syarat pembayaran & pengiriman

Packaging Details: 1 piece in a box 1.5kg

Delivery Time: 4~8 working days

Payment Terms: T/T,PayPal

Supply Ability: 3000pcs/month

Galeri

Factory price gigabit 4 port poe switch 65W with poe watchdog

Deskripsi Produk

Factory price gigabit 4 port poe switch 65W with poe watchdog

Key Features of 10/100/1000mbps POE Switch

4* Gigabit PoE ports+2*Gigabit Ethernet ports.
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.
Ethernet ports support 10/100/1000M self-adaptive.
Flow control method: IEEE 802.3x standard is adopted for full duplex, and Back pressure standard is adopted for half duplex.
Supports automatic port rollover(Auto MDI/MDIX).
Using a store-and-forward switching mechanism.
All ports support line speed switching.
Zero configuration feature, automatically feeding to adaptive devices.
Panel indicators monitor the working status and assist in fault analysis.
Three speed one button intelligent dial switch, supporting VLAN, Default, and Extend modes.

Specification of 10/100/1000 POE Ethernet Switch

I/O Interface
Power	AC 100~240V 50/60Hz
Ethernet	4* Gigabit PoE ports 2* Gigabit Ethernet ports
Hardware parameters
Bandwidth	12Gbps
Packet Forwarding Rate	8.928Mpps
Package Cache	1Mbit
Mac Address	2K
Jumbo Frame	9216bytes
Forwarding mode	Store Forward
Protocol Standard
Network Protocol	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x
PoE Protocol	IEEE802.3af (15.4 W) IEEE802.3at (30 W)
Network Media	10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX : Cat5 or aboveUTP/STP(≤100m) 1000Base-TX : Cat5 or aboveUTP/STP(≤100m)
Safety certification	CE, FCC, RoHS
Environment Standard
Working Environment	Working temperature: - 10~50 ℃ Storage temperature: - 40~70 ℃ Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Functional indication
PWR (Power light)	PWR(Power indication), Mode(DIP indication),1-6 Green light(Link&Data)
PWR	On: Powered on Off: Powered off
Mode	On:VLAN(Port isolation) Off:Default(Normal mode) Flashing:Extend(Link extension)
1-6 Green light	On:Link connection is normal Off:Link not working Flashing:Data transmission
DIP switch	VLAN, Default, Extend
VLAN	Port isolation: 1-4 ports realize isolation between the each port of the monitoring network and inter working with the uplink ports to protect intranet security.
Default	Normal mode, all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive.
Extend	In the link extension mode, the 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M.
Physical Specification
Structure size	Product size: 200* 118* 44mm Package size: 245* 190* 60mm Product weight: 0.61Kg Package weight: 0.91Kg
Packing information	Outer box size: 520* 320* 400mm Packing quantity: 20 sets Packing weight: 19.2KG
Supply voltage	Input voltage: AC 100-240 V 50/60Hz Power supply: 52V1.25A
Power	Mainboard power: maximum 5W POE power: maximum 60W
Packing list	Switch, 1 PCS Power cord, 1PCS Manual and certificate of conformity, 1 PCS

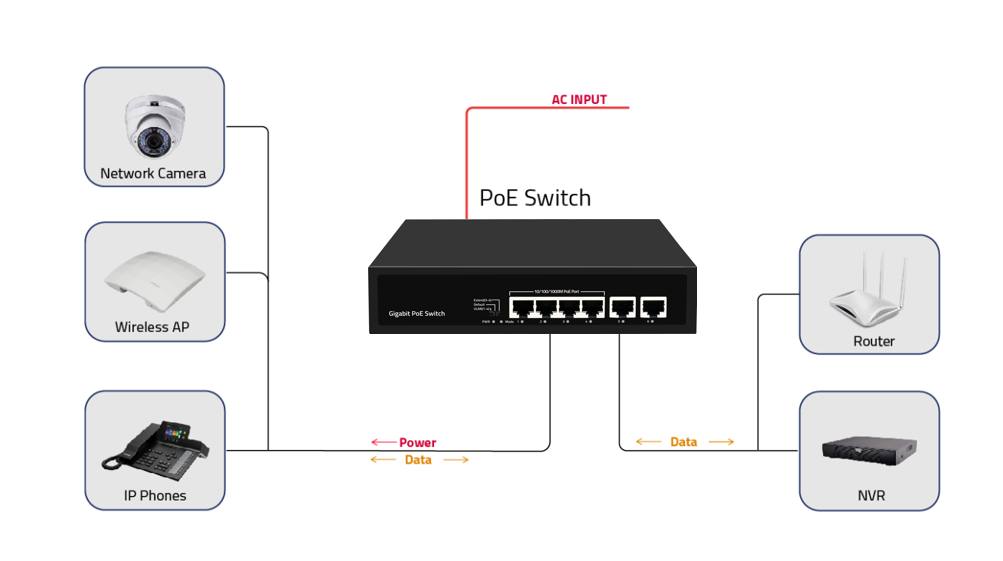

Application

Metropolitan fiber broadband network: Telecommunications, cable TV, network system integration, etc., according to network operators.
Broadband private network: Suitable for special networks in industries such as finance, government, petroleum, railway, electric power, public security, transportation, education, etc.
Multimedia transmission: Integrated transmission of images, voice, and data, suitable for applications such as distance education, conference television, and videophone.
Real time monitoring: Simultaneous transmission of real-time control signals, images, and data.

Factory price gigabit 4 port poe switch 65W with poe watchdog 0

Packing List

	CONTENT	QTY	UNIT
Packing List	6 port POE Ethernet Switch	1	Set
	Instruction manual	1	Set
	Certificate of quality	1	Set
	Power cord	1	Set

Our Advantage:

1. Manufacturing: We are a powerful factory and has been in this industry about 10 years

2. Professional R＆D center: We have a professional and independent R＆D team. Most our engineers have more than 5 years experience.

3. Fast dispatch: Most of the products are in stock. Below 10pcs can arrange delivery with 3 days.

4. Small order accepted: Low MOQ accepted. 1pcs are availabel.

5. Insurance: 1 year warranty.
