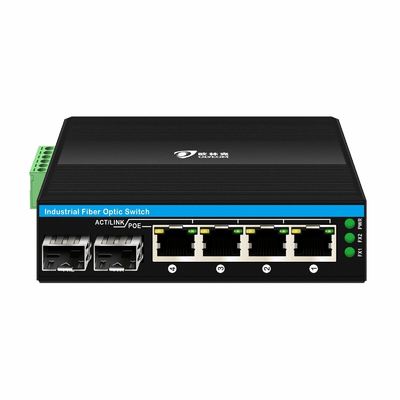

Outdoor poe switch gigabit ethernet fiber switch 2SFP+4RJ45 for CCTV Security
Introduction of Outdoor POE Switch

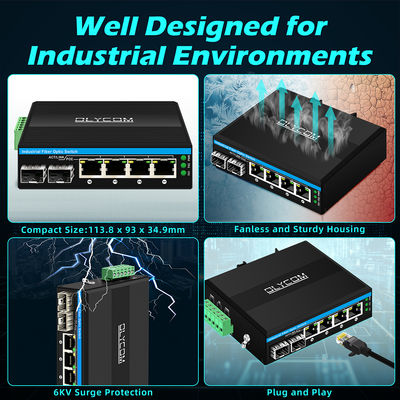

IM-FP244GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to +75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Industrial Full Gigabit Switch
| Product Name |
10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP) |
| Model No. |
IM-FP244GE |
| Port |
2x 100/1000Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode:storage and forward
System bandwidth:40Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~4)
(802.3at standards required special instructions)
|
| Environment |
Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
|
| Safety |
CE Mark ,commercial
CE/LVD EN60950
|
| Mechanical information |
Shell:Corrugated metal shell
Safety class:IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method:Din-rail mounting
|
| Warranty |
3 years |

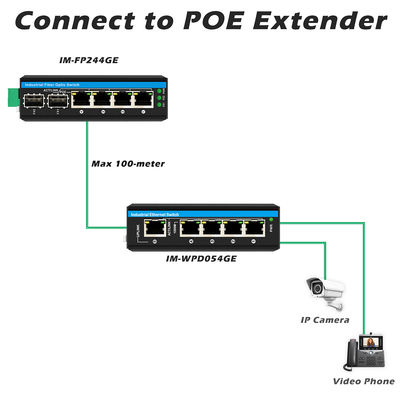

Application of 6 port din rail switch
Dimension of unmanaged gigabit switch

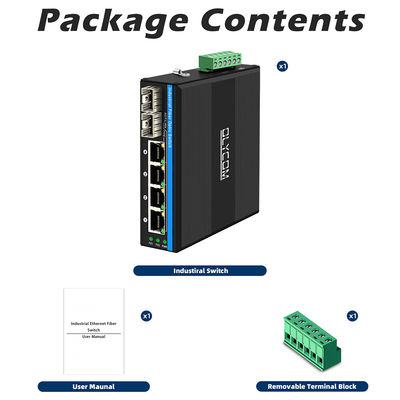

Packing box of Din rail unmanaged switch
-
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 40pcs in a packing box of 67*33*47cm dimension.
FAQ:
1. What is the input voltage?
A: For PoE switches, it is DC48V~52V.
For non-PoE switches, it is DC12V~52V.
2. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports
3. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.

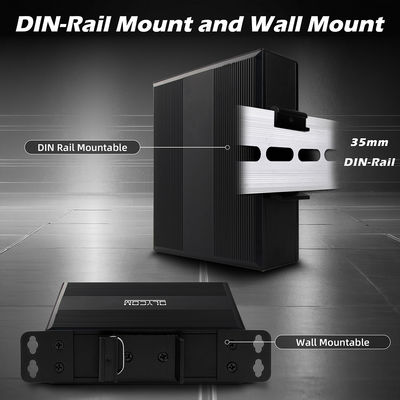

4. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
5. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
