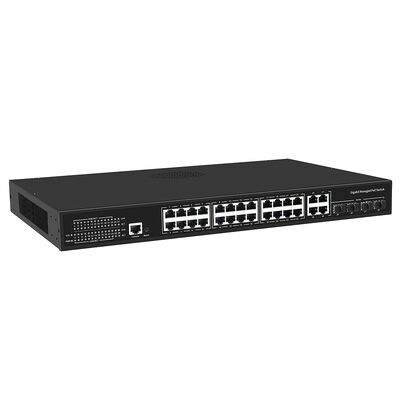

24 Port CCTV PoE Managed Ethernet Switch
Features
This switch offers 24 x 10/100/1000Mbps PoE ports, ensuring that high-power devices like network cameras and wireless access points are reliably powered.
IEEE 802.3af/at compatibility allows for power delivery of up to 30W per port, making it perfect for supporting both PoE+ and standard PoE devices.
Data throughput is enhanced with a switching capacity of 56Gbps and 41.66Mpps throughput, ensuring seamless network operations.
Its advanced security features, such as 802.1x port authentication, AAA support, and TACACS+ authentication, guarantee safe and controlled network access.
The switch also includes PoE Watchdog and PoE power management, which optimizes power distribution and ensures long-term reliability. Furthermore, surge protection (6KV general, 2KV differential) and electrostatic discharge (ESD) protection (8KV air, 6KV contact) ensure that the system is resilient against electrical hazards.
Hardware Specification
|
I/O Interface
|
|
Power
|
Input: AC 100-240V, 50/60Hz
|
|
Ethernet
|
24* 10/100/1000Mbps PoE Port
4* 1000M RJ45 Port(Combo)
4*1000M SFP Port (Combo)
1 * RJ45 Console Port
|
|
Performance
|
|
Switching Capacity
|
56Gbps
|
|
Throughput
|
41.66Mpps
|
|
Packet Buffer
|
4Mbit
|
|
Flash Memory
|
16MByte
|
|
DDR SDRAM
|
128MByte
|
|
VLAN
|
VLAN range 1-4094, with a maximum active VLAN of 256
|
|
MAC Address
|
8K
|
|
Jumbo Frame
|
10Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
Standard
|
|
Network protocol
|
IEEE 802.3:Ethernet MAC Protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX Fast Ethernet
IEEE 802.3ab:1000BASE-T Gigabit Ethernet
IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3az:Energy Efficient Ethernet
IEEE 802.3ad:Standard method for performing link aggregation
IEEE 802.3x:Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q:VLAN Bridge Operation
IEEE 802.1x:Client/Server Access Control and Authentication Protocol
IEEE 802.1d:STP
IEEE 802.1s:MSTP
IEEE 802.1w:RSTP
|
|
PoE Protocol
|
IEEE802.3af (15.4W)
IEEE802.3at (30W)
|
|
Industry Standard
|
EMS: EN61000-4-2 (ESD)
EN61000-4-5 (Surge)
|
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Multi-mode Fiber: 50/125,62.5/125,100/140um
Single-mode Fiber: 8/125,8.7/125,9/125,10/125um
|
|
Protection
|
|
Security Certificate
|
CE,FCC,RoHS
|
|
Environment
|
|
Working Environment
|
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~95%,non-condensing
|
|
Indication
|
|
LED Indicators
|
PWR(power supply),SYS(System),1-24 PoE&ACT (PoE),1-24 Link&ACT(Link&Act),25-28 Link(Link),25-28 Act (Act)
|
|
DIP Switch
|
Reset
|
|
Mechanical
|
|
Structure Size
|
Product Dimension : 440* 280*44mm
Package Dimension : 500*365*85mm
N.W:3.65kg
G.W:4.36kg
|
|
Packing Info
|
Carton MEAS:520*445*385mm
Packing Qty:5 units
Packing Weight:22.8KG
|
|
Power Voltage
|
Input Voltage :AC 100-240 V
Power supply:52V7.69A
|
|
power
|
Product power: maximum 20W
POE power: maximum 380W
|
|
Package List
|
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable)
|
Software Features
|
L3 Function
|
|
IPv4
|
IPv4 VLAN Interface
|
|
IPv4 Static Routes
|
|
ARP
|
|
IPv6
|
IPv6 VLAN Interface
|
|
IPv6 Static Routes
|
|
IPv6 ND
|
|
L2 Function
|
|
Port
|
Port Switch
|
|
Port Description
|
|
Port Speed
|
|
Port Duplex
|
|
Port Flow Control
|
|
Jumbo, Up to 10K
|
|
EEE
|
|
Fiber Module(DDM)
|
|
Link Aggregation
|
Supports load balance policy;
Base on MAC and IP-MAC
|
|
Static and Dynamic Group
|
|
Supports LACP
|
|
Up to 8 groups
|
|
Storm Control
|
Boardcast
|
|
Unknown Multicast
|
|
Unknown Unicast
|
|
Port Mirroring
|
One to one monitor
|
|
Many to one monitor
|
|
Ingress/Egress/Both
|
|
Up to 4 session groups
|
|
Port Security
|
MAC Address Constraints
|
|
Port Security MAC Address
|
|
Protect/Restrict/Shutdown
|
|
Port Isolation
|
|
|
Port Rate-limit
|
|
|
Loopback Detection
|
|
|
VLAN
|
Access/Trunk/Hybrid
|
|
VLAN Tunnel (Q-in-Q Tunnel)
|
|
Congurable VID from 1 - 4094;
Max. 256 static VLAN groups
|
|
Voice VLAN
|
|
MAC VLAN
|
|
Surveillance VLAN
|
|
Protocol VLAN
|
|
GVRP
|
|
MAC Address
|
Dynamic Address
|
|
Static Address
|
|
Filtering Address
|
|
Spnning Tree Protocol
|
STP/RSTP/MSTP
|
|
BPDU Filter
|
|
BPDU Guard
|
|
Edge Port
|
|
LLDP
|
LLDP
|
|
LLDP MED
|
|
Multicast
|
IGMP Snnoping
|
|
IGMP V1/V2/V3
|
|
Router Port
|
|
Static IGMP group address
|
|
IGMP groups filtering
|
|
Querier
|
|
MLD Snooping
|
|
MVR
|
|
QoS
|
Traffic classification based, Strict priority and WRR
|
|
Port Priority
|
|
802.1P Priority
|
|
IP TOS Priority
|
|
IP DSCP Priority
|
|
Supports up to 8 queues per port
|
|
Priority Remarking
|
|
PoE
|
|
PoE Configuration
|
PoE Temperature
|
|
PoE Type/Level/Power/Voltage/Current
|
|
PoE Switch
|
|
PoE Watchdog
|
|
PoE power AF/AT adaptation
|
|
PoE Schedule
|
|
|
PoE Port Timer Reboot
|
|
|
Services
|
|
DHCP
|
DHCP Server
|
|
IP Pool
|
|
Static Binding
|
|
DHCP Relay
|
|
Access Protocol
|
HTTP
|
|
HTTPS
|
|
Telnet
|
|
SSHv2
|
|
Manager ACL
|
|
Session Timeout
|
|
Password Retry Count
|
|
Silent Time
|
|
Security
|
|
AAA
|
RADIUS
|
|
TACACS+
|
|
802.1X
|
|
Base on port/MAC/local/WEB
|
|
DHCP Snooping
|
Global/VLAN
|
|
Option 82
|
|
Circuit ID
|
|
IP Source Guard
|
|
|
Dynamic ARP Inspection
|
|
|
DoS
|
|
|
ACL
|
MAC ACL
|
|
IPv4 ACL
|
|
IPv6 ACL
|
|
Diagnostics
|
|
Syslog
|
Logging Message
|
|
Remote Server
|
|
Ping
|
|
|
Traceroute
|
|
|
Copper Test
|
|
|
UDLD
|
|
|
Management
|
|
Manager Access
|
Console
|
|
HTTP/HTTPS
|
|
Telnet
|
|
SSH
|
|
SNMP
|
|
Manager IP
|
Static Address
|
|
DHCP Client
|
|
Supports IPv4 and IPv6 address
|
|
Manager VLAN
|
|
DNS
|
|
Time Synchronization
|
SNTP
|
|
Manual Time
|
|
SNMP
|
V1/V2C/V3
|
|
Community
|
|
V3 User
|
|
Group
|
|
Trap Host
|
|
SNMP MIB
|
RFC 1213 MIB-II
|
|
RFC 1493 Bridge MIB
|
|
RFC 1643 Ethernet MIB
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
|
|
RFC 2863 Interface MIB
|
|
LLDP
|
|
Private MIB
|
|
RMON
|
Statistics
|
|
History
|
|
Event
|
|
Alarm
|
|
User
|
|
|
Firmware
|
Firmware Upgarde
|
|
Configuration
|
Upload and download
|
|
Save
|
|
|
Restart
|
|
|
Factory Defaults
|
|
|
Standards Compliance
|
|
IEEE 802.3x flow control and back pressure
|
|
IEEE 802.3ad port trunk with LACP
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN tagging
|
|
IEEE 802.1x Port Authentication Network Control
|
|
IEEE 802.1ab LLDP
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
RFC 768 UDP
|
|
RFC 793 TFTP
|
|
RFC 791 IP
|
|
RFC 792 ICMP
|
|
RFC 2068 HTTP
|
|
RFC 1112 IGMP v1
|
|
RFC 2236 IGMP v2
|
|
RFC 3376 IGMP v3
|
|
RFC 2710 MLD v1
|
|
FRC 3810 MLD v2
|
Introduction
The OM42824-PSE-GW is a state-of-the-art Gigabit Managed PoE Switch that integrates high-performance features with energy-efficient design.
With 28 ports supporting IEEE 802.3af/at PoE standards, it is a reliable solution for power and data transmission over Ethernet.
Designed for network applications such as surveillance systems and remote office setups, it offers fanless operation and natural cooling, making it ideal for noise-sensitive environments.
Its 1U rack-mountable form factor ensures it fits into various infrastructure setups, particularly in small-to-medium scale deployments.
Additionally, its high-speed network IC and the most stable PoE chipset contribute to its overall robustness and efficiency.
Dimension
