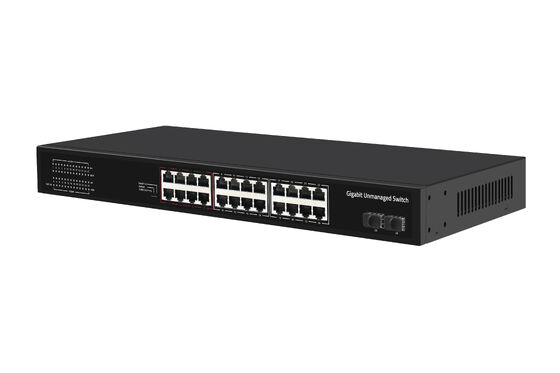

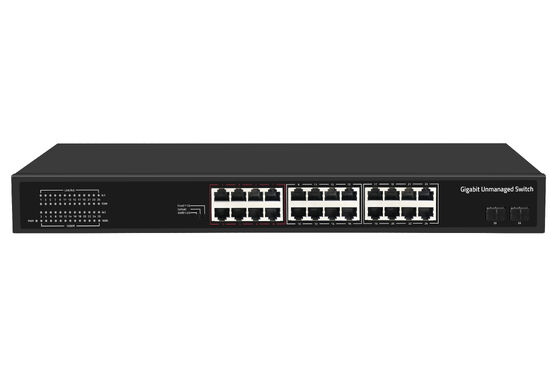

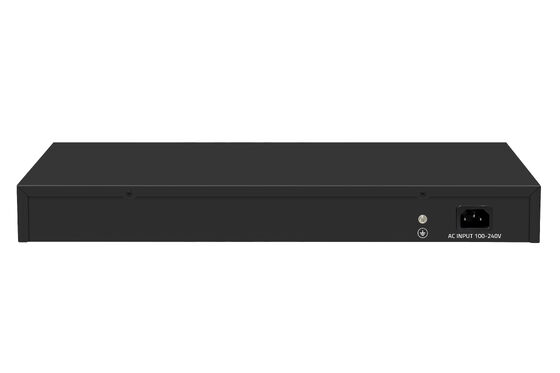

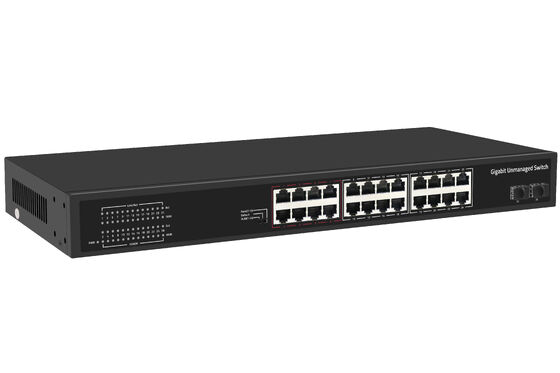

24 Port Gigabit Fiber Network Switch Unmanaged Smart VLAN & Extend Mode AC Powered

Key Features

• 24*10/100/1000M RJ45 Ports+2*1000M SFP Ports
• Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z standards
• Ethernet port supports 10/100/1000M adaptive
• Support auto MDI/ MDIX
• Panel indicators to monitor working status and help fault analysis
• One-key smart switch, support VLAN, Default, Extend three modes
• Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
• Port 1-8 supports QoS data priority
• Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact

1pc switch(neutral device)

1pc power cable(standards vary across countries)

1pc user manual(including QIG information)

1pair mounting brackets(rack mountable)

Shipping box information(Below information is approximately accurate)

Product size: 440*204*44.5mm

Inner box size: 500*290*85mm

Product weight: 2.36Kg

Packing weight: 2.93Kg

Master box size: 520*445*310mm

Packing quantity: 5Pcs

Packing weight: 15.6Kg

Remark

Accessories(optical module, patchcord etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us

Power cable is included in BOTH the packing box AND unit pricing

Dimension
